Building an accessory dwelling unit brings exciting opportunities for homeowners. Whether you plan to house aging family members or generate rental income, the bathroom design demands careful attention.
Creating a safe, functional assisted bathroom in your ADU protects loved ones and adds significant value to your property. The right features transform a standard bathroom into an accessible space that serves people with varying mobility needs.
This comprehensive guide explores essential accessibility features for ADU bathrooms. You’ll discover practical solutions that combine safety, comfort, and modern design.
Our accessibility experts answer your questions about ADU bathroom planning every day.
Walk-In Showers: The Foundation of Accessible Bathroom Design
Walk-in showers represent the most critical feature in any assisted bathroom. These barrier-free designs eliminate dangerous thresholds that create tripping hazards for people with limited mobility.
Zero-Threshold Entry Benefits
A curbless shower entrance allows wheelchair users to roll directly into the shower space. This design also helps people using walkers or canes navigate the bathroom safely.
The floor slopes gently toward the drain, preventing water from spilling into the main bathroom area. Proper waterproofing extends beyond the shower floor to protect your ADU structure.
- Wheelchair accessibility without assistance
- Reduced fall risk for all users
- Easier cleaning and maintenance
- Modern, spa-like aesthetic appeal
- Increases property value significantly
Essential Shower Components
Every accessible shower needs specific elements to function properly. A built-in or fold-down shower bench provides a safe place to sit while bathing.
Install a handheld showerhead with an adjustable sliding bar. This allows users to shower while seated and accommodates people of different heights.
Shower Bench Options
Built-in benches offer permanent stability and support weight distribution across the shower wall structure.
- Tiled built-in benches match décor
- Fold-down seats save space
- Freestanding shower chairs offer flexibility
- Corner benches maximize shower layouts
Showerhead Configurations
Multiple showerhead options provide bathing flexibility for users with different physical capabilities and preferences.
- Handheld units with 60-inch hoses
- Dual showerhead systems
- Thermostatic controls prevent scalding
- Lever-style controls for easy operation
Drainage Solutions
Proper drainage prevents water accumulation that creates slipping hazards in accessible shower spaces.
- Linear drains along one wall
- Center drain placement options
- Adequate slope toward drain
- Large drain grates for flow capacity
Size Requirements
Adequate shower dimensions accommodate wheelchairs, caregivers, and safe transfer from mobility devices.
- Minimum 36 x 36 inches for basic access
- 60 x 30 inches for wheelchair transfer
- 60 x 60 inches for roll-in access
- Consider caregiver assistance space

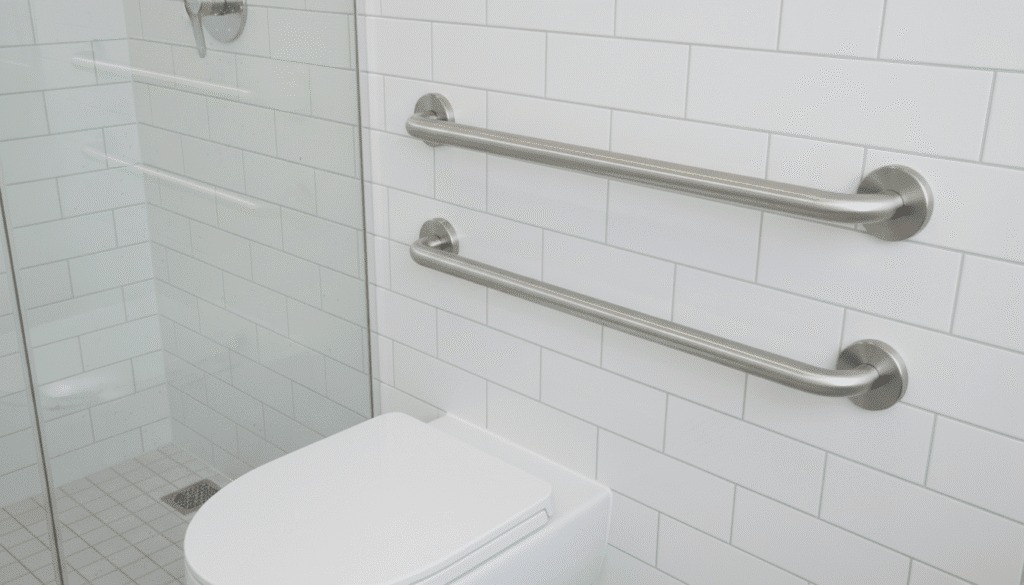

Strategically Placed Grab Bars Throughout Your ADU Bathroom
Grab bars provide essential support that prevents falls and assists with movement. These safety features belong near every fixture in an assisted bathroom.
Many homeowners worry grab bars look institutional. Modern designs now feature attractive finishes that complement contemporary bathroom décor while delivering critical safety benefits.
Toilet Area Grab Bars
Installing grab bars on both sides of the toilet helps users safely lower and raise themselves. Place horizontal bars 33 to 36 inches above the floor.
One bar should extend at least 12 inches beyond the front of the toilet. This configuration supports transfers from wheelchairs and provides leverage for standing.
- Both sides of toilet (side walls)
- Behind toilet (rear wall)
- Inside shower on control wall
- Shower entrance or transfer point
- Bathtub entry and interior walls
- Near bathroom entry door
Required Grab Bar Locations
- Along bathroom pathways
- Near vanity for standing support
- Opposite shower bench placement
- Next to towel storage areas
- Entrance to water closet compartment
- Transition points between surfaces
Optional Enhancement Areas
Shower and Bathtub Grab Bars
Shower grab bars require strategic placement based on your specific shower layout. Install at least one horizontal bar on the longest wall at 33 to 36 inches high.
Add a vertical bar near the entrance for stability when entering or exiting. If your shower includes a bench, place grab bars within easy reach of seated users.
Professional Installation Critical: Grab bars must support at least 250 pounds of force. Improper installation into drywall alone creates dangerous failure risks. Always anchor grab bars into wall studs or use reinforced blocking installed during construction.
Get Your Free ADU Bathroom Accessibility Assessment
Our certified accessibility specialists help you design the perfect assisted bathroom for your accessory dwelling unit. We evaluate your space, recommend optimal features, and provide detailed cost estimates tailored to your family’s specific needs.

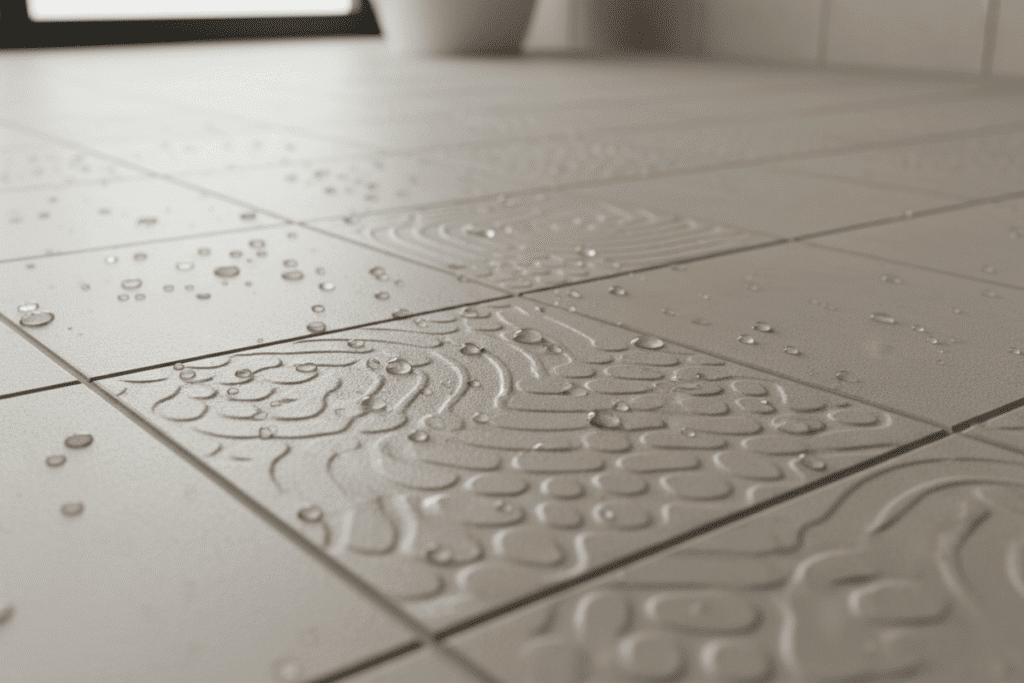

Non-Slip Flooring Options That Combine Safety and Style
The floor surface in your ADU bathroom directly impacts user safety. Slip-resistant flooring prevents dangerous falls that cause serious injuries, especially for older adults.
Water naturally accumulates on bathroom floors. Standard tile becomes treacherously slippery when wet, creating hazards for people with balance issues or mobility limitations.
Select flooring materials with textured surfaces that provide traction even when soaked. The right choice balances slip resistance with ease of cleaning and wheelchair maneuverability.
Top Flooring Materials for Assisted Bathrooms
Porcelain and ceramic tiles with matte or textured finishes offer excellent slip resistance. Look for tiles rated with a Dynamic Coefficient of Friction of 0.42 or higher for wet areas.
Luxury vinyl tile provides comfortable, slip-resistant surfaces at lower costs than natural stone. This material also offers cushioning that reduces injury severity if falls occur.
| Flooring Material | Slip Resistance Rating | Wheelchair Friendly | Cost Range | Maintenance Level |
| Textured Porcelain Tile | Excellent (DCOF 0.50+) | Yes | $$-$$$ | Low |
| Luxury Vinyl Tile | Very Good (DCOF 0.42-0.50) | Yes | $-$$ | Very Low |
| Natural Stone (Honed) | Good (DCOF 0.42-0.45) | Yes (with sealing) | $$$-$$$$ | Medium |
| Rubber Flooring | Excellent (DCOF 0.55+) | Yes | $$ | Low |
| Cork Flooring | Very Good (DCOF 0.45-0.50) | Limited | $$-$$$ | Medium-High |
Installation Considerations
Ensure your contractor creates a level floor throughout the bathroom. Even small lips or height changes between flooring materials create tripping hazards.
Grout lines should sit flush with tile surfaces. Recessed grout creates wheel-catching gaps that impede wheelchair movement and complicate cleaning.

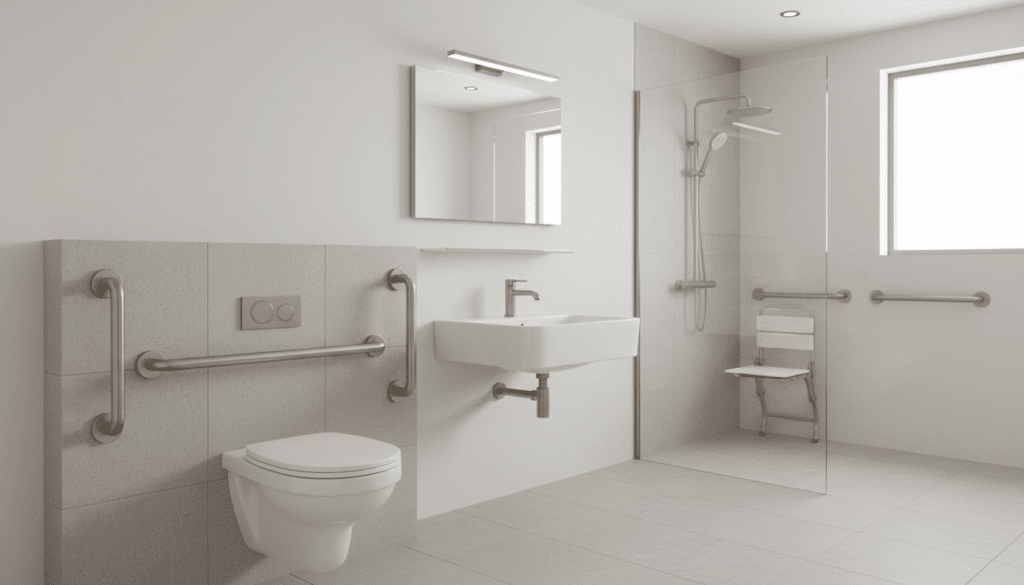

Accessible Fixtures: Toilets, Sinks, and Faucets
Standard bathroom fixtures create obstacles for people with mobility challenges. Accessible fixtures designed for assisted living remove these barriers while maintaining attractive aesthetics.
Comfort Height Toilets
Install toilets with seat heights between 17 and 19 inches from the floor. This “comfort height” matches standard chair height, making transfers easier for people with limited leg strength.
Wall-mounted toilets offer adjustable height during installation. This flexibility lets you customize the fixture to the primary user’s specific needs and wheelchair seat height.
Provide clear floor space of at least 30 by 48 inches in front of the toilet. Wheelchair users need this area for positioning and transfer.
Accessible Sink Design
Wall-mounted or pedestal sinks with open space underneath accommodate wheelchair users. The sink rim should sit no higher than 34 inches from the floor.
Knee clearance of at least 27 inches high, 30 inches wide, and 19 inches deep allows wheelchair users to roll under the sink. Insulate or cover exposed pipes to prevent leg burns.
- Lever-style faucet handles require minimal grip strength
- Touchless faucets eliminate the need to manipulate controls
- Single-lever faucets simplify temperature adjustment
- Install faucets within 20 inches of the front sink edge
- Provide accessible storage within reach of sink users
Shower Controls and Valves
Position shower controls on the wall opposite the showerhead between 38 and 48 inches high. This placement allows users to adjust water temperature before entering the shower spray.
Thermostatic mixing valves prevent dangerous water temperature spikes. Set maximum hot water temperature at 120 degrees Fahrenheit to avoid scalding.

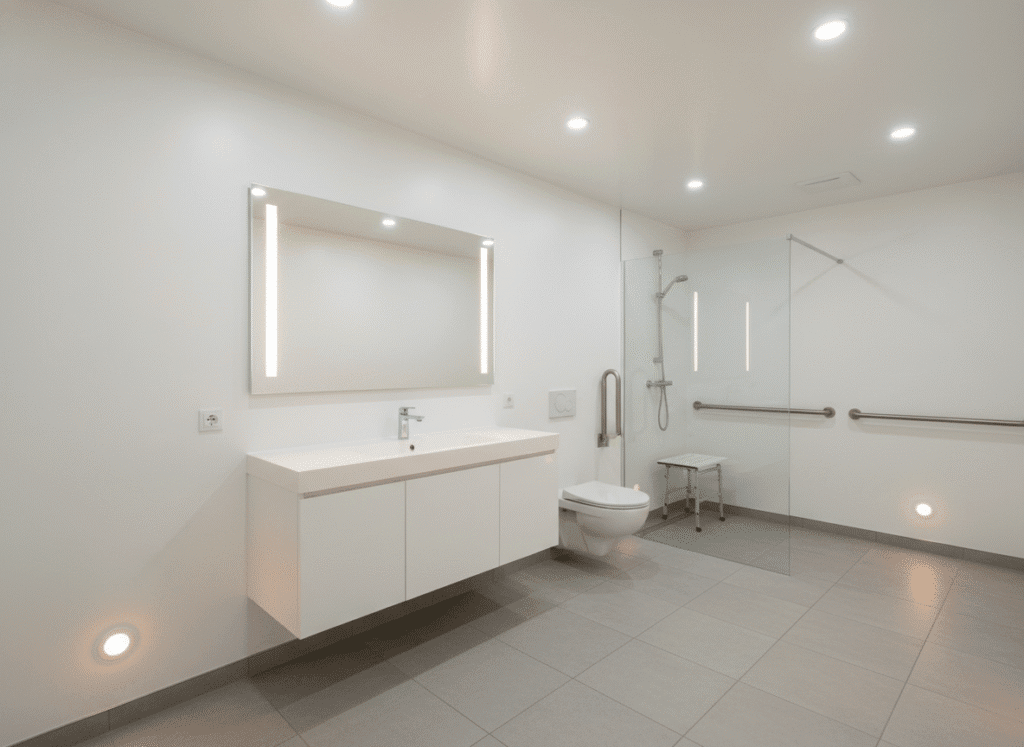

Proper Lighting Solutions for Safety and Visibility
Adequate lighting prevents accidents and helps people with vision impairments navigate bathroom spaces safely. Poor lighting contributes to falls and creates difficulty using bathroom facilities.
Layered Lighting Approach
Combine multiple light sources to eliminate shadows and provide even illumination. Overhead lighting alone creates harsh shadows that obscure potential hazards.
Install bright overhead lights that provide general illumination throughout the entire bathroom space. LED fixtures deliver excellent light quality while reducing energy costs.
Add task lighting near the mirror and vanity area. These focused lights help with grooming tasks and medication management.
Night Lighting and Motion Sensors
Motion-activated night lights guide users safely during nighttime bathroom visits. These low-level lights prevent dark navigation that leads to falls and injuries.
Place motion sensor lights along the path from the bedroom to the bathroom. Install additional sensors inside the bathroom to illuminate the space upon entry.
Lighting Level Recommendation: Maintain at least 50 foot-candles of light throughout the bathroom. Increase to 100 foot-candles in task areas like the vanity. Use daylight-spectrum bulbs (5000K-6500K) that improve visibility for aging eyes.
Light Switch Accessibility
Mount light switches 48 inches or lower from the floor for wheelchair user access. Rocker-style switches operate more easily than traditional toggle switches.
Consider installing lighted switches that glow in the dark for easy location. Motion-activated lighting eliminates the need to locate switches in the dark entirely.
Adequate Storage and Clearance Space
Accessible bathrooms require careful space planning. Wheelchairs and walkers need room to maneuver, while users need to reach essential items easily.

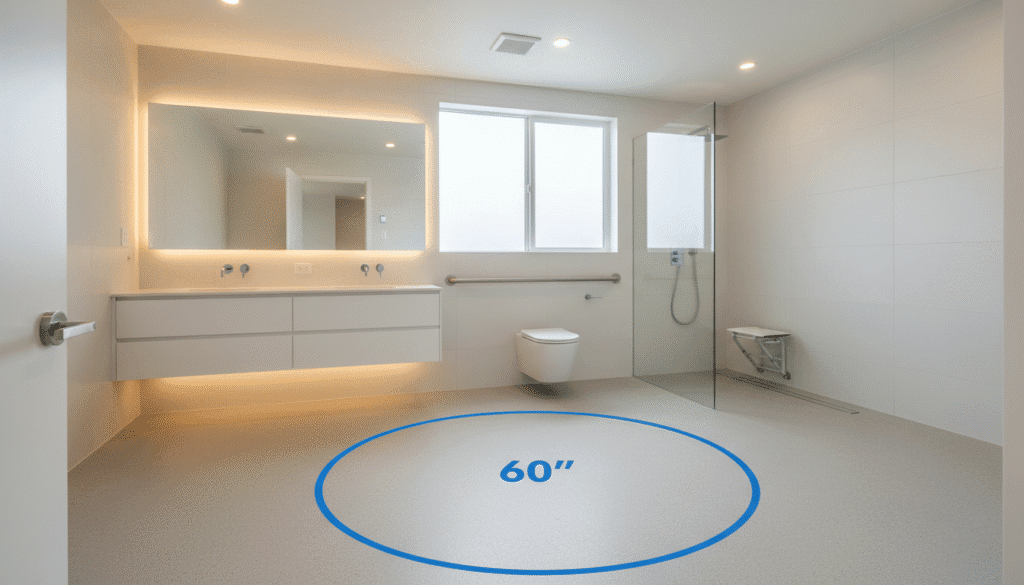

Clear Floor Space Requirements
Provide a clear turning circle of 60 inches diameter or a T-shaped turning space. This allows wheelchair users to turn around and exit the bathroom.
Maintain at least 30 inches of clear width for doorways and passage. Wider passages accommodate larger wheelchairs and walkers more comfortably.
Keep the floor clear of unnecessary items. Bathroom rugs, scales, and trash cans create obstacles that impede mobility device movement.
Accessible Storage Solutions
Install shelving and cabinets between 15 and 48 inches from the floor. This range accommodates both seated and standing users.
Use pull-out drawers instead of deep cabinets. Drawers bring items forward for easy access without requiring users to reach into dark cabinet depths.
Consider open shelving for frequently used items. This eliminates the need to manipulate cabinet doors or drawers.

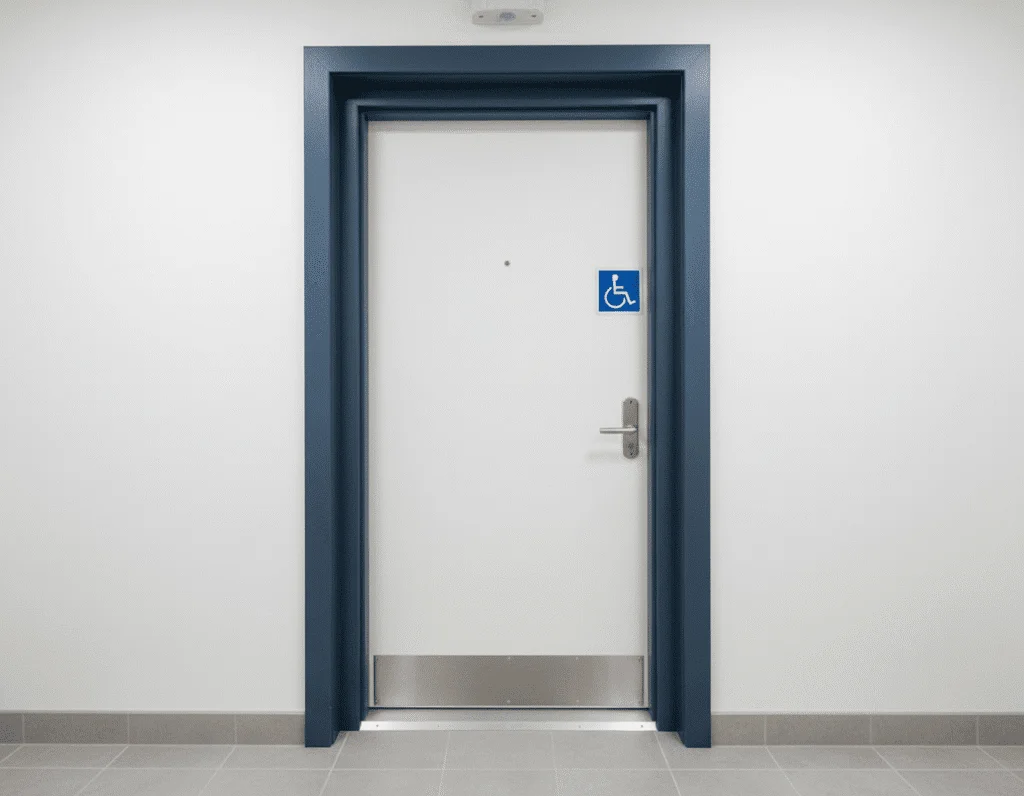

Accessible Doors and Hardware
Bathroom entry doors require special consideration in accessible design. Standard doors often create barriers that prevent independent bathroom access.
Door Width and Swing
Install doors with at least 32 inches of clear opening width. Measure the actual passage width when the door stands open at 90 degrees.
Pocket doors or sliding doors work well in tight spaces where traditional swing doors consume floor area. These designs maximize usable bathroom space.
Outward-swinging doors prevent blockage if someone falls inside the bathroom. This configuration allows emergency responders to access the room easily.
Door Hardware Options
- Lever handles instead of round knobs
- D-pull handles on sliding doors
- Automatic door openers for full accessibility
- Install hardware 48 inches or lower from floor
- Use contrasting colors for visibility
Threshold Considerations
- Maximum threshold height of one-half inch
- Bevel threshold edges at 1:2 slope ratio
- Consider zero-threshold entries when possible
- Ensure smooth transitions between rooms
- Use contrasting threshold colors for visibility
Ventilation and Air Quality
Proper ventilation protects your ADU investment and maintains healthy air quality. Moisture accumulation damages structures and creates mold problems that affect respiratory health.
Exhaust Fan Requirements
Install exhaust fans rated for your bathroom size. Calculate the required capacity by multiplying bathroom square footage by 1.1 for standard bathrooms with 8-foot ceilings.
Choose quiet fans rated at 1.5 sones or less. Loud fans discourage use, leading to moisture problems and poor air quality.
Position controls within easy reach. Wall-mounted switches should sit 48 inches or lower from the floor for wheelchair accessibility.
Natural Ventilation Options
Windows provide natural light and ventilation when weather permits. Install windows with easy-to-operate mechanisms like crank handles or push-out designs.
Position window controls no higher than 48 inches from the floor. This allows seated users to open and close windows independently.
Humidity Control: Bathroom humidity should stay below 50 percent to prevent mold growth. Consider installing a humidity-sensing exhaust fan that activates automatically when moisture levels rise. This feature protects users who may forget to activate ventilation manually.

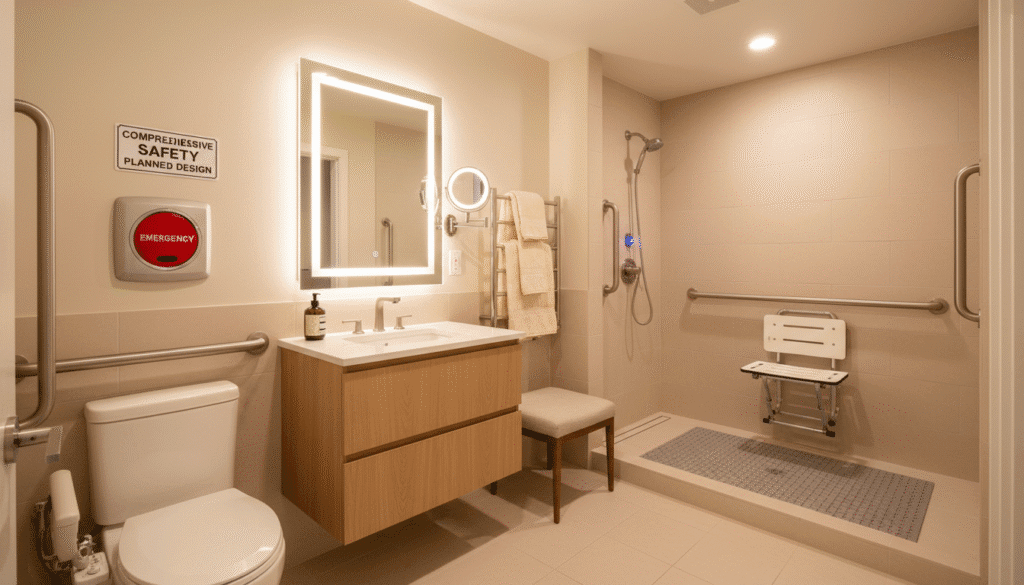

Additional Safety and Comfort Features
Beyond the core accessibility elements, several additional features enhance safety and improve the user experience in assisted bathrooms.
Emergency Call Systems
Install emergency call buttons or pull cords within reach of the toilet and shower. These systems alert caregivers or family members when assistance becomes necessary.
Waterproof panic buttons mounted on walls provide reliable emergency communication. Place these devices low enough for someone who has fallen to reach them.
Temperature and Comfort Controls
Heated floors provide comfort and reduce cold-related muscle stiffness that increases fall risk. Radiant floor heating systems install beneath bathroom flooring during construction.
Towel warmers deliver luxury while serving a practical purpose. Warm towels help older adults maintain body temperature after bathing.
Mirrors and Reflection
Install mirrors that tilt or mount at heights serving both seated and standing users. Full-length mirrors help with dressing and grooming tasks.
Seating Options
Provide stable seating outside the shower for drying off and dressing. Built-in benches or fold-down seats save space while serving essential functions.
Contrast and Color
Use contrasting colors between walls, floors, and fixtures. Visual contrast helps people with vision impairments navigate the bathroom safely.
Smart Technology Integration
Voice-activated controls eliminate the need to manipulate switches and knobs. Smart speakers can control lights, adjust thermostats, and call for help.
Automatic faucets and soap dispensers reduce physical demands on users with arthritis or limited hand strength. These touchless features also improve hygiene.
Building Codes and ADA Compliance
Understanding accessibility standards helps you create bathrooms that truly serve users with disabilities. These regulations also protect your investment by ensuring proper construction.
ADA Guidelines for Residential Spaces
The Americans with Disabilities Act establishes minimum standards for accessible design. While ADA primarily governs public spaces, these guidelines inform best practices for residential accessibility.
Key ADA bathroom measurements include specific clearances around fixtures, grab bar placement heights, and accessible route widths. Following these standards creates bathrooms that accommodate the widest range of users.
| Feature | ADA Guideline | Practical Application |
| Toilet Centerline | 16-18 inches from side wall | Allows proper grab bar placement and transfer space |
| Sink Height | 34 inches maximum rim height | Enables wheelchair users to reach faucet controls |
| Grab Bar Diameter | 1.25 to 1.5 inches | Optimizes grip for hands of different sizes |
| Shower Controls Height | 38-48 inches above floor | Accessible from both seated and standing positions |
| Door Clear Width | 32 inches minimum | Accommodates standard wheelchair passage |
Local Building Permit Requirements
Check with your local building department before starting ADU bathroom construction. Permit requirements vary by location and impact project timelines and costs.
Many jurisdictions offer expedited permits for accessible dwelling units that address housing needs. Research available incentives that may reduce your building costs.
Work with contractors experienced in accessible construction. Their familiarity with local codes prevents costly mistakes and ensures proper installation of safety features.
Cost Considerations and Budget Planning
Understanding the financial aspects of accessible bathroom construction helps you plan effectively. Investment in quality accessibility features pays dividends through safety, comfort, and property value.
Initial Construction Costs
Accessible bathroom features typically add 10 to 20 percent to standard bathroom construction costs. This investment prevents expensive retrofits and creates spaces that serve multiple generations.
Walk-in showers with proper accessibility features cost more than standard tub-shower combinations. However, the safety benefits and market appeal justify the additional expense.
Quality grab bars and blocking reinforcement represent relatively small upfront costs. Professional installation ensures these critical safety features function properly for decades.
Long-Term Value and ROI
Accessible ADU bathrooms increase property value significantly. The aging population drives strong demand for housing with accessibility features built in from the start.
Rental income potential improves when your ADU serves a broader market. Accessible units attract responsible tenants willing to pay premium rental rates for safety and convenience.
Families often pay more to keep aging loved ones close rather than choosing institutional care facilities. Your accessible ADU provides this option while generating income or adding value to your property.
- Research costs for each feature category before finalizing plans
- Obtain multiple contractor quotes to ensure competitive pricing
- Consider phased construction if budget constraints require staging
- Explore tax credits and grants for accessible housing construction
- Factor in long-term maintenance costs when selecting materials
- Calculate potential rental income to justify accessibility investments

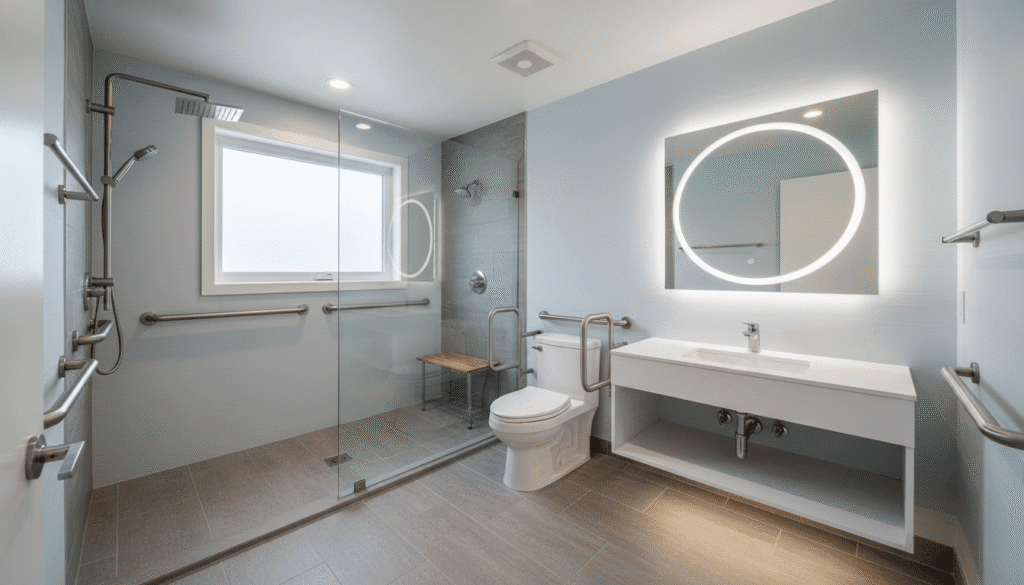

Creating Safe, Functional Spaces for Aging in Place
Building an accessible bathroom in your accessory dwelling unit requires thoughtful planning and attention to detail. The features covered in this guide create spaces that serve people with varying mobility needs while maintaining attractive design.
Walk-in showers eliminate dangerous barriers. Strategically placed grab bars prevent falls and support independent living. Non-slip flooring protects users from injuries. Accessible fixtures accommodate wheelchairs and other mobility devices.
Proper lighting prevents accidents and helps people with vision challenges navigate safely. Adequate clearance space allows comfortable movement throughout the bathroom. Quality ventilation protects your investment and maintains healthy air quality.
The investment in accessibility features pays returns through safety, comfort, rental income potential, and increased property value. These bathrooms serve multiple generations and adapt as needs change over time.
Start your ADU bathroom project with clear accessibility goals. Work with experienced professionals who understand accessible design principles and local building codes. The result will be a bathroom that truly supports aging in place while enhancing your property value and providing peace of mind for years to come.
Your accessible ADU bathroom represents more than construction costs and building materials. It creates opportunities for family members to remain close, generates reliable rental income, and adds meaningful value to your home. Most importantly, it provides the safety and dignity that everyone deserves in their daily living spaces.
